sparkfumのカラーLCDを使ってみよう

配線をする

ノキアカラー液晶ピッチ変換モジュールを使ってみます。
ノキアカラーＬＣＤモジュール（１２８ｘ１２８）　キャリーボード付も使えます。
回路図(Nokia-Breakout-v14.pdf)
しかしながら、内部制御LSIが異なる場合があるようなので、必ずこのプログラムで動作するということはあり得ません。
よく分かりませんが、LCD保護シートを取るところの色で異なるという噂もあります。ここでは下の写真で確認できるように「青」を用いています。

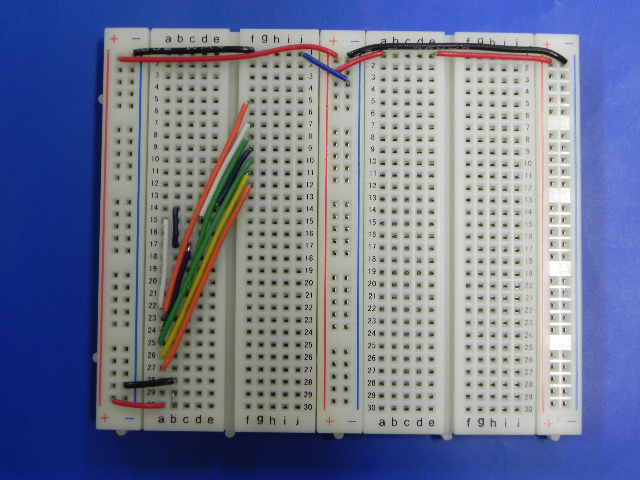

LCDをブレッドボードに直接付けてmbedに配線することを考えます。
Nokia LCD           mbed
   S1  o-------------o
   S2  o-------------o
   CS  o-------------o  8   (DigitalOut cs) 緑
   SCK o-------------o  7   (SPI sclk)      白
   DIO o-------------o  5   (SPI miso)      橙
   RST o-------------o  9   (reset)         紫
   ST2 o-------------o 10   (DigitalOut p10)緑
   ST1 o-------------o 11   (DigitalOut p11)黄
   ST0 o-------------o 12   (DigitalOut p12)橙
   GND o-------------o GND                  黒
   3.3Vo-------------o VOUT                 赤
   p12 o-------------o VOUT

LCD上のスイッチを用いるときにはmbedのp19とp20を用いた。
その時の配線。
Nokia LCD           mbed                       ブレッドボード
   S1  o-------------o 19   (DigitalOut p19)茶 19
   S2  o-------------o 20   (DigitalOut p20)灰 20
   CS  o-------------o  8   (DigitalOut cs) 緑 21
   SCK o-------------o  7   (SPI sclk)      白 22
   DIO o-------------o  5   (SPI miso)      橙 23
   RST o-------------o  9   (reset)         紫 24
   ST2 o-------------o 10   (DigitalOut p10)緑 25
   ST1 o-------------o 11   (DigitalOut p11)黄 26
   ST0 o-------------o 12   (DigitalOut p12)橙 27
   GND o-------------o GND                  黒 28
   3.3Vo-------------o VOUT                 赤 29
   p12 o-------------o VOUT                    30
mbedを装着します

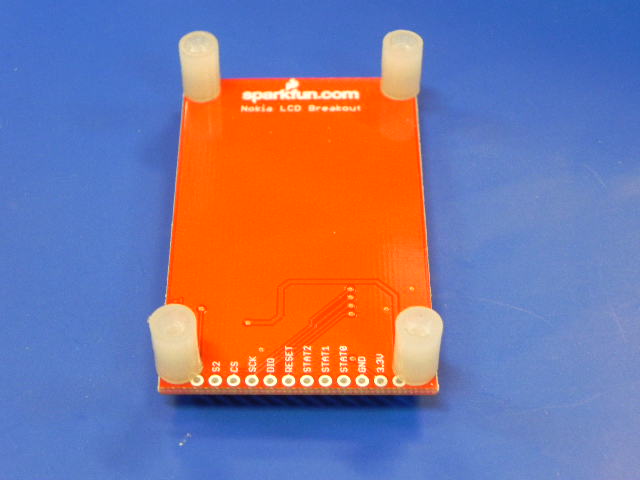

購入した時のLCDの裏
ブレッドボードに差し込むために、接続部分の足を取り外し、ピンヘッダを半田付けします。

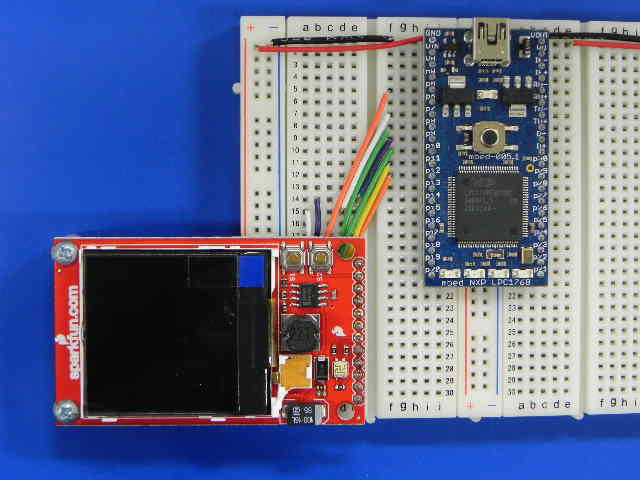

LCDを付けます
main.cpp
#include "mbed.h"
#include "NokiaLCD.h"

NokiaLCD lcd(p5, p7, p8, p9, NokiaLCD::PCF8833); // mosi, sclk, cs, rst, type
//                                                  橙　　白　　緑　紫
int main() {
  int bgcolor=0;
  lcd.background(0x0000FF);
  while(1){

    switch(bgcolor++)
    {
      case 0 :lcd.background(0x800000); break;
      case 1 :lcd.background(0x008000); break;
      case 2 :lcd.background(0x000080); bgcolor=0; break;
    }

    lcd.cls();
    lcd.fill(1, 20, 128, 10, 0x00ff00);     // 緑
    lcd.fill(0, 70, 130, 10, 0x0000ff);     // 青
    lcd.fill(50, 1, 10, 128, 0xFF0000);     // 赤
    for(int i=0; i<3; i++) {
      lcd.locate(0,i+12);
      lcd.printf("Hello World!miz%d", i);
    }
    for (int i=0; i<130; i++) {
        lcd.pixel(i, 60 + sin((float)i / 5.0)*10, 0xffffff);
    }
    wait_ms(1000);
  }
}


NokiaLCD.h

NokiaLCD.h
/* mbed NokiaLCD Library, for a 130x130 Nokia colour LCD
 * Copyright (c) 2007-2010, sford
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN
 * THE SOFTWARE.
 */

#ifndef MBED_NOKIALCD_H
#define MBED_NOKIALCD_H

#include "mbed.h"

/** An interface for the 130x130 Nokia Mobile phone screens
 *
 * @code
 * #include "mbed.h"
 * #include "NokiaLCD.h"
 *
 * NokiaLCD lcd(p5, p7, p8, p9, NokiaLCD::6610); // mosi, sclk, cs, rst, type
 *
 * int main() {
 *     lcd.printf("Hello World!");
 * }
 * @endcode
 */
class NokiaLCD : public Stream {

public:
    /** LCD panel format */
    enum LCDType {
        LCD6100     /**< Nokia 6100, as found on sparkfun board (default) */
        , LCD6610   /**< Nokia 6610, as found on olimex board */
        , PCF8833
    };

    /** Create and Nokia LCD interface, using a SPI and two DigitalOut interfaces
     *
     * @param mosi SPI data out
     * @param sclk SPI clock
     * @param cs Chip Select (DigitalOut)
     * @param rst Reset (DigitalOut)
     * @param type The LCDType to select driver chip variants
     */
    NokiaLCD(PinName mosi, PinName sclk, PinName cs, PinName rst, LCDType type = LCD6100);

#if DOXYGEN_ONLY
    /** Write a character to the LCD
     *
     * @param c The character to write to the display
     */
    int putc(int c);

    /** Write a formated string to the LCD
     *
     * @param format A printf-style format string, followed by the
     *               variables to use in formating the string.
     */
    int printf(const char* format, ...);
#endif

    /** Locate to a screen column and row
     *
     * @param column  The horizontal position from the left, indexed from 0
     * @param row     The vertical position from the top, indexed from 0
     */
    void locate(int column, int row);

    /** Clear the screen and locate to 0,0 */
    void cls();

    /** Set a pixel on te screen
     *
     * @param x horizontal position from left
     * @param y vertical position from top
     * @param colour 24-bit colour in format 0x00RRGGBB
     */
    void pixel(int x, int y, int colour);

    /** Fill an area of the screen
     *
     * @param x horizontal position from left
     * @param y vertical position from top
     * @param width width in pixels
     * @param height height in pixels
     * @param colour 24-bit colour in format 0x00RRGGBB
     */
    void fill(int x, int y, int width, int height, int colour);

    void blit(int x, int y, int width, int height, const int* colour);
    void bitblit(int x, int y, int width, int height, const char* bitstream);

    int width();
    int height();
    int columns();
    int rows();

    void reset();

    /** Set the foreground colour
     *
     * @param c 24-bit colour
     */
    void foreground(int c);

    /** Set the background colour
     *
     * @param c 24-bit colour
     */
    void background(int c);

protected:
    virtual void _window(int x, int y, int width, int height);
    virtual void _putp(int colour);

    void command(int value);
    void data(int value);

    void newline();
    virtual int _putc(int c);
    virtual int _getc() {
        return 0;
    }
    void putp(int v);
    void window(int x, int y, int width, int height);

    SPI _spi;
    DigitalOut _rst;
    DigitalOut _cs;

    LCDType _type;
    int _row, _column, _rows, _columns, _foreground, _background, _width, _height;
};

#endif


NokiaLCD.cpp

NokiaLCD.cpp
/* mbed Nokia LCD Library
 * Copyright (c) 2007-2010, sford
 */

#include "NokiaLCD.h"

#include "mbed.h"

#define NOKIALCD_ROWS 16
#define NOKIALCD_COLS 16
#define NOKIALCD_WIDTH 131
#define NOKIALCD_HEIGHT 131
#define NOKIALCD_FREQUENCY 5000000

NokiaLCD::NokiaLCD(PinName mosi, PinName sclk, PinName cs, PinName rst, LCDType type)
        : _spi(mosi, NC, sclk)
        , _rst(rst)
        , _cs(cs) {

    _type = type;

    _row = 0;
    _column = 0;
    _foreground = 0x00FFFFFF;
    _background = 0x00000000;

    reset();
}

void NokiaLCD::reset() {

    // setup the SPI interface and bring display out of reset
    _cs = 1;
    _rst = 0;
    _spi.format(9);
    _spi.frequency(NOKIALCD_FREQUENCY);
    wait_ms(1);
    _rst = 1;
    wait_ms(1);

    _cs = 0;

    switch (_type) {
        case LCD6100:
            command(0xCA); // display control
            data(0);
            data(32);
            data(0);
            command(0xBB);
            data(1);
            command(0xD1); // oscillator on
            command(0x94); // sleep out
            command(0x20); // power control
            data(0x0F);
            command(0xA7); // invert display
            command(0x81); // Voltage control
            data(39);      // contrast setting: 0..63
            data(3);       // resistance ratio
            wait_ms(1);
            command(0xBC);
            data(0);
            data(1);
            data(4);
            command(0xAF);  // turn on the display
            break;

        case LCD6610:
            command(0xCA);    // display control
            data(0);
            data(31);
            data(0);
            command(0xBB);
            data(1);
            command(0xD1); // oscillator on
            command(0x94); // sleep out
            command(0x20); // power control
            data(0x0F);
            command(0xA7); // invert display
            command(0x81); // Voltage control
            data(39);      // contrast setting: 0..63
            data(3);       // resistance ratio
            wait_ms(1);
            command(0xBC);
            data(0);
            data(0);
            data(2);
            command(0xAF);  // turn on the display
            break;

        case PCF8833:
            command(0x11);  // sleep out
            command(0x3A);  // column mode
            data(0x05);     // 16 bits par pixel
            command(0x36);  // madctl
            data(0x60);     // vertical RAM, flip x
            command(0x25);  // setcon
            data(0x30);// contrast 0x30
            wait_ms(2);
            command(0x29);//DISPON
            command(0x03);//BSTRON
            break;
    }

    _cs = 1;

    cls();
}

void NokiaLCD::command(int value) {
    _spi.write(value & 0xFF);
}

void NokiaLCD::data(int value) {
    _spi.write(value | 0x100);
}

void NokiaLCD::_window(int x, int y, int width, int height) {
//    int x1 = x + 2;
/*
    int x1 = x;
    int y1 = y + 0;
    int x2 = x1 + width - 1;
    int y2 = y1 + height - 1;
*/
    int x1 = x;
    int y1 = y + 0;
    int x2 = x1 + width-1;
    int y2 = y1 + height-1;
    switch (_type) {
        case LCD6100:
        case LCD6610:
            command(0x15); // column
            data(x1);
            data(x2);
            command(0x75); // row
            data(y1);
            data(y2);
            command(0x5C); // start write to ram
            break;
        case PCF8833:
            command(0x2A);  // column
            data(x1);
            data(x2);
            command(0x2B); // row
            data(y1);
            data(y2);
            command(0x2C); // start write to ram
            break;
    }
}

void NokiaLCD::_putp(int colour) {
/*    int gr = ((colour >> 20) & 0x0F)
             | ((colour >> 8 ) & 0xF0);
    int nb = ((colour >> 4 ) & 0x0F);
    gr = 0xe0;
    nb = 0x07;
    data(nb);
    data(gr);
*/
    int rg = ((colour >> 16) & 0xF8)
             | ((colour >> 13 ) & 0x07);
    int gb = ((colour >> 5 ) & 0xE0)
             | ((colour >> 3 ) & 0x1f);
//    rg = 0xf8;
//    rg &= 0x07;
//    gb &= 0xe0;
//    rg = 0x07;
//    gb = 0xe0;
    data(rg);
    data(gb);

}

const unsigned char FONT8x8[97][8] = {
    0x08,0x08,0x08,0x00,0x00,0x00,0x00,0x00, // columns, rows, num_bytes_per_char
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // space 0x20
    0x30,0x78,0x78,0x30,0x30,0x00,0x30,0x00, // !
    0x6C,0x6C,0x6C,0x00,0x00,0x00,0x00,0x00, // "
    0x6C,0x6C,0xFE,0x6C,0xFE,0x6C,0x6C,0x00, // #
    0x18,0x3E,0x60,0x3C,0x06,0x7C,0x18,0x00, // $
    0x00,0x63,0x66,0x0C,0x18,0x33,0x63,0x00, // %
    0x1C,0x36,0x1C,0x3B,0x6E,0x66,0x3B,0x00, // &
    0x30,0x30,0x60,0x00,0x00,0x00,0x00,0x00, // '
    0x0C,0x18,0x30,0x30,0x30,0x18,0x0C,0x00, // (
    0x30,0x18,0x0C,0x0C,0x0C,0x18,0x30,0x00, // )
    0x00,0x66,0x3C,0xFF,0x3C,0x66,0x00,0x00, // *
    0x00,0x30,0x30,0xFC,0x30,0x30,0x00,0x00, // +
    0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x30, // ,
    0x00,0x00,0x00,0x7E,0x00,0x00,0x00,0x00, // -
    0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00, // .
    0x03,0x06,0x0C,0x18,0x30,0x60,0x40,0x00, // / (forward slash)
    0x3E,0x63,0x63,0x6B,0x63,0x63,0x3E,0x00, // 0 0x30
    0x18,0x38,0x58,0x18,0x18,0x18,0x7E,0x00, // 1
    0x3C,0x66,0x06,0x1C,0x30,0x66,0x7E,0x00, // 2
    0x3C,0x66,0x06,0x1C,0x06,0x66,0x3C,0x00, // 3
    0x0E,0x1E,0x36,0x66,0x7F,0x06,0x0F,0x00, // 4
    0x7E,0x60,0x7C,0x06,0x06,0x66,0x3C,0x00, // 5
    0x1C,0x30,0x60,0x7C,0x66,0x66,0x3C,0x00, // 6
    0x7E,0x66,0x06,0x0C,0x18,0x18,0x18,0x00, // 7
    0x3C,0x66,0x66,0x3C,0x66,0x66,0x3C,0x00, // 8
    0x3C,0x66,0x66,0x3E,0x06,0x0C,0x38,0x00, // 9
    0x00,0x18,0x18,0x00,0x00,0x18,0x18,0x00, // :
    0x00,0x18,0x18,0x00,0x00,0x18,0x18,0x30, // ;
    0x0C,0x18,0x30,0x60,0x30,0x18,0x0C,0x00, // <
    0x00,0x00,0x7E,0x00,0x00,0x7E,0x00,0x00, // =
    0x30,0x18,0x0C,0x06,0x0C,0x18,0x30,0x00, // >
    0x3C,0x66,0x06,0x0C,0x18,0x00,0x18,0x00, // ?
    0x3E,0x63,0x6F,0x69,0x6F,0x60,0x3E,0x00, // @ 0x40
    0x18,0x3C,0x66,0x66,0x7E,0x66,0x66,0x00, // A
    0x7E,0x33,0x33,0x3E,0x33,0x33,0x7E,0x00, // B
    0x1E,0x33,0x60,0x60,0x60,0x33,0x1E,0x00, // C
    0x7C,0x36,0x33,0x33,0x33,0x36,0x7C,0x00, // D
    0x7F,0x31,0x34,0x3C,0x34,0x31,0x7F,0x00, // E
    0x7F,0x31,0x34,0x3C,0x34,0x30,0x78,0x00, // F
    0x1E,0x33,0x60,0x60,0x67,0x33,0x1F,0x00, // G
    0x66,0x66,0x66,0x7E,0x66,0x66,0x66,0x00, // H
    0x3C,0x18,0x18,0x18,0x18,0x18,0x3C,0x00, // I
    0x0F,0x06,0x06,0x06,0x66,0x66,0x3C,0x00, // J
    0x73,0x33,0x36,0x3C,0x36,0x33,0x73,0x00, // K
    0x78,0x30,0x30,0x30,0x31,0x33,0x7F,0x00, // L
    0x63,0x77,0x7F,0x7F,0x6B,0x63,0x63,0x00, // M
    0x63,0x73,0x7B,0x6F,0x67,0x63,0x63,0x00, // N
    0x3E,0x63,0x63,0x63,0x63,0x63,0x3E,0x00, // O
    0x7E,0x33,0x33,0x3E,0x30,0x30,0x78,0x00, // P 0x50
    0x3C,0x66,0x66,0x66,0x6E,0x3C,0x0E,0x00, // Q
    0x7E,0x33,0x33,0x3E,0x36,0x33,0x73,0x00, // R
    0x3C,0x66,0x30,0x18,0x0C,0x66,0x3C,0x00, // S
    0x7E,0x5A,0x18,0x18,0x18,0x18,0x3C,0x00, // T
    0x66,0x66,0x66,0x66,0x66,0x66,0x7E,0x00, // U
    0x66,0x66,0x66,0x66,0x66,0x3C,0x18,0x00, // V
    0x63,0x63,0x63,0x6B,0x7F,0x77,0x63,0x00, // W
    0x63,0x63,0x36,0x1C,0x1C,0x36,0x63,0x00, // X
    0x66,0x66,0x66,0x3C,0x18,0x18,0x3C,0x00, // Y
    0x7F,0x63,0x46,0x0C,0x19,0x33,0x7F,0x00, // Z
    0x3C,0x30,0x30,0x30,0x30,0x30,0x3C,0x00, // [
    0x60,0x30,0x18,0x0C,0x06,0x03,0x01,0x00, // \ (back slash)
    0x3C,0x0C,0x0C,0x0C,0x0C,0x0C,0x3C,0x00, // ]
    0x08,0x1C,0x36,0x63,0x00,0x00,0x00,0x00, // ^
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF, // _
    0x18,0x18,0x0C,0x00,0x00,0x00,0x00,0x00, // ` 0x60
    0x00,0x00,0x3C,0x06,0x3E,0x66,0x3B,0x00, // a
    0x70,0x30,0x3E,0x33,0x33,0x33,0x6E,0x00, // b
    0x00,0x00,0x3C,0x66,0x60,0x66,0x3C,0x00, // c
    0x0E,0x06,0x3E,0x66,0x66,0x66,0x3B,0x00, // d
    0x00,0x00,0x3C,0x66,0x7E,0x60,0x3C,0x00, // e
    0x1C,0x36,0x30,0x78,0x30,0x30,0x78,0x00, // f
    0x00,0x00,0x3B,0x66,0x66,0x3E,0x06,0x7C, // g
    0x70,0x30,0x36,0x3B,0x33,0x33,0x73,0x00, // h
    0x18,0x00,0x38,0x18,0x18,0x18,0x3C,0x00, // i
    0x06,0x00,0x06,0x06,0x06,0x66,0x66,0x3C, // j
    0x70,0x30,0x33,0x36,0x3C,0x36,0x73,0x00, // k
    0x38,0x18,0x18,0x18,0x18,0x18,0x3C,0x00, // l
    0x00,0x00,0x66,0x7F,0x7F,0x6B,0x63,0x00, // m
    0x00,0x00,0x7C,0x66,0x66,0x66,0x66,0x00, // n
    0x00,0x00,0x3C,0x66,0x66,0x66,0x3C,0x00, // o
    0x00,0x00,0x6E,0x33,0x33,0x3E,0x30,0x78, // p
    0x00,0x00,0x3B,0x66,0x66,0x3E,0x06,0x0F, // q
    0x00,0x00,0x6E,0x3B,0x33,0x30,0x78,0x00, // r
    0x00,0x00,0x3E,0x60,0x3C,0x06,0x7C,0x00, // s
    0x08,0x18,0x3E,0x18,0x18,0x1A,0x0C,0x00, // t
    0x00,0x00,0x66,0x66,0x66,0x66,0x3B,0x00, // u
    0x00,0x00,0x66,0x66,0x66,0x3C,0x18,0x00, // v
    0x00,0x00,0x63,0x6B,0x7F,0x7F,0x36,0x00, // w
    0x00,0x00,0x63,0x36,0x1C,0x36,0x63,0x00, // x
    0x00,0x00,0x66,0x66,0x66,0x3E,0x06,0x7C, // y
    0x00,0x00,0x7E,0x4C,0x18,0x32,0x7E,0x00, // z
    0x0E,0x18,0x18,0x70,0x18,0x18,0x0E,0x00, // {
    0x0C,0x0C,0x0C,0x00,0x0C,0x0C,0x0C,0x00, // |
    0x70,0x18,0x18,0x0E,0x18,0x18,0x70,0x00, // }
    0x3B,0x6E,0x00,0x00,0x00,0x00,0x00,0x00, // ~
    0x1C,0x36,0x36,0x1C,0x00,0x00,0x00,0x00
}; // DEL

void NokiaLCD::locate(int column, int row) {
    _column = column;
    _row = row;
}

void NokiaLCD::newline() {
    _column = 0;
    _row++;
    if (_row >= _rows) {
        _row = 0;
    }
}

int NokiaLCD::_putc(int value) {
    int x = _column * 8;  // FIXME: Char sizes
    int y = _row * 8;
//    bitblit(x + 1, y + 1, 8, 8, (char*)&(FONT8x8[value - 0x1F][0]));
    bitblit(y , x, 8, 8, (char*)&(FONT8x8[value - 0x1F][0]));

    _column++;

    if (_column >= NOKIALCD_COLS) {
        _row++;
        _column = 0;
    }

    if (_row >= NOKIALCD_ROWS) {
        _row = 0;
    }

    return value;
}

void NokiaLCD::cls() {
    fill(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT, _background);
    _row = 0;
    _column = 0;
}


void NokiaLCD::window(int x, int y, int width, int height) {
    _cs = 0;
    _window(x, y, width, height);
    _cs = 1;
}

void NokiaLCD::putp(int colour) {
    _cs = 0;
    _putp(colour);
    _cs = 1;
}

void NokiaLCD::pixel(int x, int y, int colour) {
    _cs = 0;
//    _window(x, y, 1, 1);
    _window(y, x, 1, 1);
    _putp(colour);
    _cs = 1;
}

void NokiaLCD::fill(int x, int y, int width, int height, int colour) {
    _cs = 0;
//    _window(x, y, width, height);
    _window(y+1, x+1, height, width);
    switch (_type) {
        case LCD6100:
        case PCF8833:
            for (int i=0; i<width*height; i++) {
                _putp(colour);
            }
            break;
        case LCD6610:
            for (int i=0; i<width*height/2; i++) {
                int r4 = (colour >> (16 + 4)) & 0xF;
                int g4 = (colour >> (8 + 4)) & 0xF;
                int b4 = (colour >> (0 + 4)) & 0xF;
                int d1 = (r4 << 4) | g4;
                int d2 = (b4 << 4) | r4;
                int d3 = (g4 << 4) | b4;
                data(d1);
                data(d2);
                data(d3);
            }
            break;
    }
    _window(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT);
    _cs = 1;
}

void NokiaLCD::blit(int x, int y, int width, int height, const int* colour) {
    _cs = 0;

    _window(x, y, width, height);

    switch (_type) {
        case LCD6100:
        case PCF8833:
            for (int i=0; i<width*height; i++) {
                 _putp(colour[i]);
             }
             break;
        case LCD6610:
            for (int i=0; i<width*height/2; i++) {
        	    int r41 = (colour[i*2] >> (16 + 4)) & 0xF;
        	    int g41 = (colour[i*2] >> (8 + 4)) & 0xF;
        	    int b41 = (colour[i*2] >> (0 + 4)) & 0xF;

                int r42 = (colour[i*2+1] >> (16 + 4)) & 0xF;
        	    int g42 = (colour[i*2+1] >> (8 + 4)) & 0xF;
        	    int b42 = (colour[i*2+1] >> (0 + 4)) & 0xF;
        	    int d1 = (r41 << 4) | g41;
        	    int d2 = (b41 << 4) | r42;
        	    int d3 = (g42 << 4) | b42;
       	        data(d1);
    	        data(d2);
    	        data(d3);
            }
            break;
     }
    _window(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT);
    _cs = 1;
}

void NokiaLCD::bitblit(int x, int y, int width, int height, const char* bitstream) {
    _cs = 0;
    _window(x, y, width, height);

    switch (_type) {
        case LCD6100:
        case PCF8833:
            for (int i=0; i<height*width; i++) {
                int byte = i / 8;
                int bit = i % 8;
                int colour = ((bitstream[byte] << bit) & 0x80) ? _foreground : _background;
                _putp(colour);
            }
            break;
        case LCD6610:
            for(int i=0; i<height*width/2; i++) {
                int byte1 = (i*2) / 8;
                int bit1 = (i*2) % 8;
        	    int colour1 = ((bitstream[byte1] << bit1) & 0x80) ? _foreground : _background;
        	    int byte2 = (i*2+1) / 8;
                int bit2 = (i*2+1) % 8;
                int colour2 = ((bitstream[byte2] << bit2) & 0x80) ? _foreground : _background;

        	    int r41 = (colour1 >> (16 + 4)) & 0xF;
        	    int g41 = (colour1 >> (8 + 4)) & 0xF;
        	    int b41 = (colour1 >> (0 + 4)) & 0xF;

                int r42 = (colour2 >> (16 + 4)) & 0xF;
        	    int g42 = (colour2 >> (8 + 4)) & 0xF;
        	    int b42 = (colour2 >> (0 + 4)) & 0xF;
        	    int d1 = (r41 << 4) | g41;
        	    int d2 = (b41 << 4) | r42;
        	    int d3 = (g42 << 4) | b42;
       	        data(d1);
    	        data(d2);
    	        data(d3);
            }
            break;
     }
    _window(0, 0, _width, _height);
    _cs = 1;
}

void NokiaLCD::foreground(int c) {
    _foreground = c;
}

void NokiaLCD::background(int c) {
    _background = c;
}

int NokiaLCD::width() {
    return NOKIALCD_WIDTH;
}

int NokiaLCD::height() {
    return NOKIALCD_HEIGHT;
}

int NokiaLCD::columns() {
    return NOKIALCD_COLS;
}

int NokiaLCD::rows() {
    return NOKIALCD_ROWS;
}

上記のNokiaLCD.cppで文字方向がおかしい場合の修正版

NokiaLCD.cpp
/* mbed Nokia LCD Library
 * Copyright (c) 2007-2010, sford
 */

#include "NokiaLCD.h"

#include "mbed.h"

#define NOKIALCD_ROWS 16
#define NOKIALCD_COLS 16
#define NOKIALCD_WIDTH 130
#define NOKIALCD_HEIGHT 130
#define NOKIALCD_FREQUENCY 500000

NokiaLCD::NokiaLCD(PinName mosi, PinName sclk, PinName cs, PinName rst, LCDType type)
        : _spi(mosi, NC, sclk)
        , _rst(rst)
        , _cs(cs) {

    _type = type;

    _row = 0;
    _column = 0;
    _foreground = 0x00FFFFFF;
    _background = 0x00000000;

    reset();
}

void NokiaLCD::reset() {

    // setup the SPI interface and bring display out of reset
    _cs = 1;
    _rst = 0;
    _spi.format(9);
    _spi.frequency(NOKIALCD_FREQUENCY);
    wait_ms(1);
    _rst = 1;
    wait_ms(1);

    _cs = 0;

    switch (_type) {
        case LCD6100:
            command(0xCA); // display control
            data(0);
            data(32);
            data(0);
            command(0xBB);
            data(1);
            command(0xD1); // oscillator on
            command(0x94); // sleep out
            command(0x20); // power control
            data(0x0F);
            command(0xA7); // invert display
            command(0x81); // Voltage control
            data(39);      // contrast setting: 0..63
            data(3);       // resistance ratio
            wait_ms(1);
            command(0xBC);
            data(0);
            data(1);
            data(4);
            command(0xAF);  // turn on the display
            break;

        case LCD6610:
            command(0xCA);    // display control
            data(0);
            data(31);
            data(0);
            command(0xBB);
            data(1);
            command(0xD1); // oscillator on
            command(0x94); // sleep out
            command(0x20); // power control
            data(0x0F);
            command(0xA7); // invert display
            command(0x81); // Voltage control
            data(39);      // contrast setting: 0..63
            data(3);       // resistance ratio
            wait_ms(1);
            command(0xBC);
            data(0);
            data(0);
            data(2);
            command(0xAF);  // turn on the display
            break;

        case PCF8833:
            command(0x11);  // sleep out
            command(0x3A);  // column mode
            data(0x05);
            command(0x36);  // madctl
            data(0xc0);     // vertical RAM, flip x,y
            command(0x25);  // setcon
            data(0x46);     // contrast 0x30
            wait_ms(2);
            command(0x29);//DISPON
            command(0x03);//BSTRON
            break;
    }

    _cs = 1;

    cls();
}

void NokiaLCD::command(int value) {
    _spi.write(value & 0xFF);
}

void NokiaLCD::data(int value) {
    _spi.write(value | 0x100);
}

void NokiaLCD::_window(int x, int y, int width, int height) {
    int x1 = x + 2;
    int y1 = y + 0;
    int x2 = x1 + width - 1;
    int y2 = y1 + height - 1;

    switch (_type) {
        case LCD6100:
        case LCD6610:
            command(0x15); // column
            data(x1);
            data(x2);
            command(0x75); // row
            data(y1);
            data(y2);
            command(0x5C); // start write to ram
            break;
        case PCF8833:
            command(0x2A);  // column
            data(x1);
            data(x2);
            command(0x2B); // row
            data(y1);
            data(y2);
            command(0x2C); // start write to ram
            break;
    }
}

void NokiaLCD::_putp(int colour) {
 /*
    int gr = ((colour >> 20) & 0x0F)
             | ((colour >> 8 ) & 0xF0);
    int nb = ((colour >> 4 ) & 0x0F);
    data(nb);
    data(gr);
*/
    int rg = ((colour >> 16) & 0xF8)
             | ((colour >> 13 ) & 0x07);
    int gb = ((colour >> 5 ) & 0xE0)
             | ((colour >> 3 ) & 0x1f);
    data(rg);
    data(gb);
}

const unsigned char FONT8x8[97][8] = {
    0x08,0x08,0x08,0x00,0x00,0x00,0x00,0x00, // columns, rows, num_bytes_per_char
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00, // space 0x20
    0x30,0x78,0x78,0x30,0x30,0x00,0x30,0x00, // !
    0x6C,0x6C,0x6C,0x00,0x00,0x00,0x00,0x00, // "
    0x6C,0x6C,0xFE,0x6C,0xFE,0x6C,0x6C,0x00, // #
    0x18,0x3E,0x60,0x3C,0x06,0x7C,0x18,0x00, // $
    0x00,0x63,0x66,0x0C,0x18,0x33,0x63,0x00, // %
    0x1C,0x36,0x1C,0x3B,0x6E,0x66,0x3B,0x00, // &
    0x30,0x30,0x60,0x00,0x00,0x00,0x00,0x00, // '
    0x0C,0x18,0x30,0x30,0x30,0x18,0x0C,0x00, // (
    0x30,0x18,0x0C,0x0C,0x0C,0x18,0x30,0x00, // )
    0x00,0x66,0x3C,0xFF,0x3C,0x66,0x00,0x00, // *
    0x00,0x30,0x30,0xFC,0x30,0x30,0x00,0x00, // +
    0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x30, // ,
    0x00,0x00,0x00,0x7E,0x00,0x00,0x00,0x00, // -
    0x00,0x00,0x00,0x00,0x00,0x18,0x18,0x00, // .
    0x03,0x06,0x0C,0x18,0x30,0x60,0x40,0x00, // / (forward slash)
    0x3E,0x63,0x63,0x6B,0x63,0x63,0x3E,0x00, // 0 0x30
    0x18,0x38,0x58,0x18,0x18,0x18,0x7E,0x00, // 1
    0x3C,0x66,0x06,0x1C,0x30,0x66,0x7E,0x00, // 2
    0x3C,0x66,0x06,0x1C,0x06,0x66,0x3C,0x00, // 3
    0x0E,0x1E,0x36,0x66,0x7F,0x06,0x0F,0x00, // 4
    0x7E,0x60,0x7C,0x06,0x06,0x66,0x3C,0x00, // 5
    0x1C,0x30,0x60,0x7C,0x66,0x66,0x3C,0x00, // 6
    0x7E,0x66,0x06,0x0C,0x18,0x18,0x18,0x00, // 7
    0x3C,0x66,0x66,0x3C,0x66,0x66,0x3C,0x00, // 8
    0x3C,0x66,0x66,0x3E,0x06,0x0C,0x38,0x00, // 9
    0x00,0x18,0x18,0x00,0x00,0x18,0x18,0x00, // :
    0x00,0x18,0x18,0x00,0x00,0x18,0x18,0x30, // ;
    0x0C,0x18,0x30,0x60,0x30,0x18,0x0C,0x00, // <
    0x00,0x00,0x7E,0x00,0x00,0x7E,0x00,0x00, // =
    0x30,0x18,0x0C,0x06,0x0C,0x18,0x30,0x00, // >
    0x3C,0x66,0x06,0x0C,0x18,0x00,0x18,0x00, // ?
    0x3E,0x63,0x6F,0x69,0x6F,0x60,0x3E,0x00, // @ 0x40
    0x18,0x3C,0x66,0x66,0x7E,0x66,0x66,0x00, // A
    0x7E,0x33,0x33,0x3E,0x33,0x33,0x7E,0x00, // B
    0x1E,0x33,0x60,0x60,0x60,0x33,0x1E,0x00, // C
    0x7C,0x36,0x33,0x33,0x33,0x36,0x7C,0x00, // D
    0x7F,0x31,0x34,0x3C,0x34,0x31,0x7F,0x00, // E
    0x7F,0x31,0x34,0x3C,0x34,0x30,0x78,0x00, // F
    0x1E,0x33,0x60,0x60,0x67,0x33,0x1F,0x00, // G
    0x66,0x66,0x66,0x7E,0x66,0x66,0x66,0x00, // H
    0x3C,0x18,0x18,0x18,0x18,0x18,0x3C,0x00, // I
    0x0F,0x06,0x06,0x06,0x66,0x66,0x3C,0x00, // J
    0x73,0x33,0x36,0x3C,0x36,0x33,0x73,0x00, // K
    0x78,0x30,0x30,0x30,0x31,0x33,0x7F,0x00, // L
    0x63,0x77,0x7F,0x7F,0x6B,0x63,0x63,0x00, // M
    0x63,0x73,0x7B,0x6F,0x67,0x63,0x63,0x00, // N
    0x3E,0x63,0x63,0x63,0x63,0x63,0x3E,0x00, // O
    0x7E,0x33,0x33,0x3E,0x30,0x30,0x78,0x00, // P 0x50
    0x3C,0x66,0x66,0x66,0x6E,0x3C,0x0E,0x00, // Q
    0x7E,0x33,0x33,0x3E,0x36,0x33,0x73,0x00, // R
    0x3C,0x66,0x30,0x18,0x0C,0x66,0x3C,0x00, // S
    0x7E,0x5A,0x18,0x18,0x18,0x18,0x3C,0x00, // T
    0x66,0x66,0x66,0x66,0x66,0x66,0x7E,0x00, // U
    0x66,0x66,0x66,0x66,0x66,0x3C,0x18,0x00, // V
    0x63,0x63,0x63,0x6B,0x7F,0x77,0x63,0x00, // W
    0x63,0x63,0x36,0x1C,0x1C,0x36,0x63,0x00, // X
    0x66,0x66,0x66,0x3C,0x18,0x18,0x3C,0x00, // Y
    0x7F,0x63,0x46,0x0C,0x19,0x33,0x7F,0x00, // Z
    0x3C,0x30,0x30,0x30,0x30,0x30,0x3C,0x00, // [
    0x60,0x30,0x18,0x0C,0x06,0x03,0x01,0x00, // \ (back slash)
    0x3C,0x0C,0x0C,0x0C,0x0C,0x0C,0x3C,0x00, // ]
    0x08,0x1C,0x36,0x63,0x00,0x00,0x00,0x00, // ^
    0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF, // _
    0x18,0x18,0x0C,0x00,0x00,0x00,0x00,0x00, // ` 0x60
    0x00,0x00,0x3C,0x06,0x3E,0x66,0x3B,0x00, // a
    0x70,0x30,0x3E,0x33,0x33,0x33,0x6E,0x00, // b
    0x00,0x00,0x3C,0x66,0x60,0x66,0x3C,0x00, // c
    0x0E,0x06,0x3E,0x66,0x66,0x66,0x3B,0x00, // d
    0x00,0x00,0x3C,0x66,0x7E,0x60,0x3C,0x00, // e
    0x1C,0x36,0x30,0x78,0x30,0x30,0x78,0x00, // f
    0x00,0x00,0x3B,0x66,0x66,0x3E,0x06,0x7C, // g
    0x70,0x30,0x36,0x3B,0x33,0x33,0x73,0x00, // h
    0x18,0x00,0x38,0x18,0x18,0x18,0x3C,0x00, // i
    0x06,0x00,0x06,0x06,0x06,0x66,0x66,0x3C, // j
    0x70,0x30,0x33,0x36,0x3C,0x36,0x73,0x00, // k
    0x38,0x18,0x18,0x18,0x18,0x18,0x3C,0x00, // l
    0x00,0x00,0x66,0x7F,0x7F,0x6B,0x63,0x00, // m
    0x00,0x00,0x7C,0x66,0x66,0x66,0x66,0x00, // n
    0x00,0x00,0x3C,0x66,0x66,0x66,0x3C,0x00, // o
    0x00,0x00,0x6E,0x33,0x33,0x3E,0x30,0x78, // p
    0x00,0x00,0x3B,0x66,0x66,0x3E,0x06,0x0F, // q
    0x00,0x00,0x6E,0x3B,0x33,0x30,0x78,0x00, // r
    0x00,0x00,0x3E,0x60,0x3C,0x06,0x7C,0x00, // s
    0x08,0x18,0x3E,0x18,0x18,0x1A,0x0C,0x00, // t
    0x00,0x00,0x66,0x66,0x66,0x66,0x3B,0x00, // u
    0x00,0x00,0x66,0x66,0x66,0x3C,0x18,0x00, // v
    0x00,0x00,0x63,0x6B,0x7F,0x7F,0x36,0x00, // w
    0x00,0x00,0x63,0x36,0x1C,0x36,0x63,0x00, // x
    0x00,0x00,0x66,0x66,0x66,0x3E,0x06,0x7C, // y
    0x00,0x00,0x7E,0x4C,0x18,0x32,0x7E,0x00, // z
    0x0E,0x18,0x18,0x70,0x18,0x18,0x0E,0x00, // {
    0x0C,0x0C,0x0C,0x00,0x0C,0x0C,0x0C,0x00, // |
    0x70,0x18,0x18,0x0E,0x18,0x18,0x70,0x00, // }
    0x3B,0x6E,0x00,0x00,0x00,0x00,0x00,0x00, // ~
    0x1C,0x36,0x36,0x1C,0x00,0x00,0x00,0x00
}; // DEL

void NokiaLCD::locate(int column, int row) {
    _column = column;
    _row = row;
}

void NokiaLCD::newline() {
    _column = 0;
    _row++;
    if (_row >= _rows) {
        _row = 0;
    }
}

int NokiaLCD::_putc(int value) {
    int x = _column * 8;  // FIXME: Char sizes
    int y = _row * 8;
    bitblit(x + 1, y + 1, 8, 8, (char*)&(FONT8x8[value - 0x1F][0]));

    _column++;

    if (_column >= NOKIALCD_COLS) {
        _row++;
        _column = 0;
    }

    if (_row >= NOKIALCD_ROWS) {
        _row = 0;
    }

    return value;
}

void NokiaLCD::cls() {
    fill(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT, _background);
    _row = 0;
    _column = 0;
}


void NokiaLCD::window(int x, int y, int width, int height) {
    _cs = 0;
    _window(x, y, width, height);
    _cs = 1;
}

void NokiaLCD::putp(int colour) {
    _cs = 0;
    _putp(colour);
    _cs = 1;
}

void NokiaLCD::pixel(int x, int y, int colour) {
    _cs = 0;
    _window(x, y, 1, 1);
    _putp(colour);
    _cs = 1;
}

void NokiaLCD::fill(int x, int y, int width, int height, int colour) {
    _cs = 0;
    _window(x, y, width, height);
    for (int i=0; i<width*height; i++) {
        _putp(colour);
    }
    _window(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT);
    _cs = 1;
}

void NokiaLCD::circle(int x0, int y0, int r, int colour) {
    int draw_x0, draw_y0;
    int draw_x1, draw_y1;
    int draw_x2, draw_y2;
    int draw_x3, draw_y3;
    int draw_x4, draw_y4;
    int draw_x5, draw_y5;
    int draw_x6, draw_y6;
    int draw_x7, draw_y7;
    int xx, yy;
    int di;

    _cs = 0;
    _window(x0, y0, 1, 1);

    if(r == 0)          /* no radius */
    {
        return;
    }

    draw_x0 = draw_x1 = x0;
    draw_y0 = draw_y1 = y0 + r;
    if(draw_y0 < NOKIALCD_HEIGHT)
    {
        _window(draw_x0, draw_y0, 1, 1);
        _putp(colour);     /* 90 degree */
    }

    draw_x2 = draw_x3 = x0;
    draw_y2 = draw_y3 = y0 - r;
    if(draw_y2 >= 0)
    {
        _window(draw_x2, draw_y2, 1, 1);
        _putp(colour);    /* 270 degree */
    }

    draw_x4 = draw_x6 = x0 + r;
    draw_y4 = draw_y6 = y0;
    if(draw_x4 < NOKIALCD_WIDTH)
    {
        _window(draw_x4, draw_y4, 1, 1);
        _putp(colour);     /* 0 degree */
    }

    draw_x5 = draw_x7 = x0 - r;
    draw_y5 = draw_y7 = y0;
    if(draw_x5>=0)
    {
        _window(draw_x5, draw_y5, 1, 1);
        _putp(colour);     /* 90 degree */     /* 180 degree */
    }

    if(r == 1)
    {
        return;
    }

    di = 3 - 2*r;
    xx = 0;
    yy = r;
    while(xx < yy)
    {

        if(di < 0)
        {
            di += 4*xx + 6;
        }
        else
        {
            di += 4*(xx - yy) + 10;
            yy--;
            draw_y0--;
            draw_y1--;
            draw_y2++;
            draw_y3++;
            draw_x4--;
            draw_x5++;
            draw_x6--;
            draw_x7++;
        }
        xx++;
        draw_x0++;
        draw_x1--;
        draw_x2++;
        draw_x3--;
        draw_y4++;
        draw_y5++;
        draw_y6--;
        draw_y7--;

        if( (draw_x0 <= NOKIALCD_WIDTH) && (draw_y0>=0) )
        {
            _window(draw_x0, draw_y0, 1, 1);
            _putp(colour);
        }

        if( (draw_x1 >= 0) && (draw_y1 >= 0) )
        {
            _window(draw_x1, draw_y1, 1, 1);
            _putp(colour);
        }

        if( (draw_x2 <= NOKIALCD_WIDTH) && (draw_y2 <= NOKIALCD_HEIGHT) )
        {
            _window(draw_x2, draw_y2, 1, 1);
            _putp(colour);
        }

        if( (draw_x3 >=0 ) && (draw_y3 <= NOKIALCD_HEIGHT) )
        {
            _window(draw_x3, draw_y3, 1, 1);
            _putp(colour);
        }

        if( (draw_x4 <= /*OLED_DISPLAY_HEIGHT*/NOKIALCD_WIDTH) && (draw_y4 >= 0) )
        {
            _window(draw_x4, draw_y4, 1, 1);
            _putp(colour);
        }

        if( (draw_x5 >= 0) && (draw_y5 >= 0) )
        {
            _window(draw_x5, draw_y5, 1, 1);
            _putp(colour);
        }
        if( (draw_x6 <= NOKIALCD_WIDTH) && (draw_y6 <= NOKIALCD_HEIGHT) )
        {
            _window(draw_x6, draw_y6, 1, 1);
            _putp(colour);
        }
        if( (draw_x7 >= 0) && (draw_y7 <= NOKIALCD_HEIGHT) )
        {
            _window(draw_x7, draw_y7, 1, 1);
            _putp(colour);
        }
    }
    _cs = 1;
    return;
}

void NokiaLCD::line(int x0, int y0, int x1, int y1, int colour) {
    int   dx = 0, dy = 0;
    int   dx_sym = 0, dy_sym = 0;
    int   dx_x2 = 0, dy_x2 = 0;
    int   di = 0;

    _cs = 0;            // Chipselect the LCD.

    dx = x1-x0;
    dy = y1-y0;


    if(dx == 0)           /* vertical line */
    {
        for(int y=y0; y<y1; y++){
            _window(x0, y, 1, 1);
            _putp(colour);
        }
        return;
    }

    if(dx > 0)
    {
        dx_sym = 1;
    }
    else
    {
        dx_sym = -1;
    }


    if(dy == 0)           /* horizontal line */
    {
        for(int x=x0; x<x1; x++){
            _window(x, y0, 1, 1);
            _putp(colour);
        }
        return;
    }


    if(dy > 0)
    {
        dy_sym = 1;
    }
    else
    {
        dy_sym = -1;
    }

    dx = dx_sym*dx;
    dy = dy_sym*dy;

    dx_x2 = dx*2;
    dy_x2 = dy*2;

    if(dx >= dy)
    {
        di = dy_x2 - dx;
        while(x0 != x1)
        {

            _window(x0, y0, 1, 1);
            _putp(colour);
            x0 += dx_sym;
            if(di<0)
            {
                di += dy_x2;
            }
            else
            {
                di += dy_x2 - dx_x2;
                y0 += dy_sym;
            }
        }
        _window(x0, y0, 1, 1);
        _putp(colour);
    }
    else
    {
        di = dx_x2 - dy;
        while(y0 != y1)
        {
            _window(x0, y0, 1, 1);
            _putp(colour);
            y0 += dy_sym;
            if(di < 0)
            {
                di += dx_x2;
            }
            else
            {
                di += dx_x2 - dy_x2;
                x0 += dx_sym;
            }
        }
        _window(x0, y0, 1, 1);
        _putp(colour);
    }
    _cs = 1;
    return;
}

void NokiaLCD::blit(int x, int y, int width, int height, const int* colour) {
    _cs = 0;
    _window(x, y, width, height);
    for (int i=0; i<width*height; i++) {
        _putp(colour[i]);
    }
    _window(0, 0, NOKIALCD_WIDTH, NOKIALCD_HEIGHT);
    _cs = 1;
}

void NokiaLCD::bitblit(int x, int y, int width, int height, const char* bitstream) {
    _cs = 0;
    _window(x, y, width, height);
    for (int i=0; i<height*width; i++) {
        int byte = i / 8;
        int bit = i % 8;
        int colour = ((bitstream[byte] << bit) & 0x80) ? _foreground : _background;
        _putp(colour);
    }
    _window(0, 0, _width, _height);
    _cs = 1;
}

void NokiaLCD::foreground(int c) {
    _foreground = c;
}

void NokiaLCD::background(int c) {
    _background = c;
}

int NokiaLCD::width() {
    return NOKIALCD_WIDTH;
}

int NokiaLCD::height() {
    return NOKIALCD_HEIGHT;
}

int NokiaLCD::columns() {
    return NOKIALCD_COLS;
}

int NokiaLCD::rows() {
    return NOKIALCD_ROWS;
}

LCD上のスイッチのテスト

DigitalInで入力設定をします。LCDの中のスイッチは抵抗でプルアップとかプルダウンはしていないので、抵抗を接続するかCPU側でプルアップします。modeメソッドを用いて引数にPullUpを送るとそのポートはプルアップされます。
main.cpp
int main()
{
  DigitalIn switch1(p19);
  DigitalIn switch2(p20);
  bool stopState=false;
  switch1.mode(PullUp);     // 入力端子をプルアップする
  switch2.mode(PullUp);     // 入力端子をプルアップする
  led5=led6=led7=1;
  while(true)
  {
    if(switch2==0)
    {
      led5=0;led6=1;led7=1;
      wait_ms(100);
    }
    if(switch1==0) {
      led5=1;led6=1;led7=0;
      stopState=false;
      wait_ms(100);
    }
    led5=led6=led7=1;
  }
}


スイッチで画像動作をon/offさせてみる

main.cpp
int main()
{
  int bgcolor=0;
  lcd.background(0x0000FF);
  DigitalIn switch1(p19);
  DigitalIn switch2(p20);
  switch1.mode(PullUp);
  switch2.mode(PullUp);
  bool stopState=true;
  while(true){
    stopState=false;
    led5=1; // 緑
    led6=1; // 青
    led7=1; // 赤
    for(int i=0; i<100; i++)
    {
      if(switch2==0) {
        stopState=true;
        led1=1;
        wait_ms(100);
        break;
      }
      wait_ms(10);
    }
    led1=0;
    do {
      if(switch1==0) {
        stopState=false;
        wait_ms(100);
      }
    } while(stopState);
    switch(bgcolor++)
    {
      case 0 :lcd.background(0x800000); led7=0; break;
      case 1 :lcd.background(0x008000); led5=0; break;
      case 2 :lcd.background(0x000080); bgcolor=0; led6=0; break;
    }

    lcd.cls();
    lcd.fill(1, 40, 128, 10, 0x00ff00);     // 緑
    lcd.fill(0, 80, 130, 10, 0x0000ff);     // 青
    lcd.fill(50, 1, 10, 128, 0xFF0000);     // 赤
    for(int i=0; i<3; i++) {
      lcd.locate(i,i+12);
      lcd.printf("miz%d", i);
    }
    for (int i=0; i<130; i++) {
        lcd.pixel(i, 80 + sin((float)i / 5.0)*10, 0x00ffffff);
    }
  }
}

割り込みを用いて画像動作をon/offさせてみる

p30を割り込み入力に設定し、スイッチに繋ぎます。スイッチに繋がっているポートは入力モードでプルアップに指定してあるので、そのまま繋ぐことが可能です。もう片方のスイッチは用いません。
main.cpp
bool stopState=true;
InterruptIn button(p30);
void flip()
{
  stopState = !stopState;
  led1=1;
  wait_ms(50);
  led1=0;
}

int main()
{
  button.rise(&flip);  // attach the address of the flip function to the rising edge

  int bgcolor=0;
  lcd.background(0x0000FF);
  DigitalIn switch1(p19);
  DigitalIn switch2(p20);
  switch1.mode(PullUp);
  switch2.mode(PullUp);
  while(true){
    led5=1; // 緑
    led6=1; // 青
    led7=1; // 赤

    while(stopState) wait_ms(1);
    switch(bgcolor++)
    {
      case 0 :lcd.background(0x800000); led7=0; break;
      case 1 :lcd.background(0x008000); led5=0; break;
      case 2 :lcd.background(0x000080); bgcolor=0; led6=0; break;
    }

    lcd.cls();
    lcd.fill(1, 40, 128, 10, 0x00ff00);     // 緑
    lcd.fill(0, 80, 130, 10, 0x0000ff);     // 青
    lcd.fill(50, 1, 10, 128, 0xFF0000);     // 赤
    for(int i=0; i<3; i++) {
      lcd.locate(i,i+12);
      lcd.printf("miz%d", i);
    }
    for (int i=0; i<130; i++) {
        lcd.pixel(i, 80 + sin((float)i / 5.0)*10, 0x00ffffff);
    }
    wait_ms(1000);
  }
}
