SevenSegmentLED.h | |
---|---|
#include "mbed.h" class SevenSegmentLED { private: DigitalOut *LED_ON; DigitalOut *LED_G; DigitalOut *LED_F; DigitalOut *LED_A; DigitalOut *LED_B; DigitalOut *LED_E; DigitalOut *LED_D; DigitalOut *LED_C; Timer t; static const short zero[7]; static const short one[3]; static const short two[6]; static const short three[6]; static const short four[5]; static const short five[6]; static const short six[7]; static const short seven[4]; static const short eight[8]; static const short nine[6]; static const short *leds[10]; short *led; short zeroValue, oneValue; void pinSetting(PinName pin[], bool cathode); public: SevenSegmentLED(); SevenSegmentLED(PinName pin[], bool cathode); void clear(); void show(int n, int time); }; |
1 2 3 4 5 6 オブジェクトを指すポインタ 7 8 9 10 11 12 13 14 タイマー 15 セグメント定数データ 16 クラスで共通な変数 17 18 19 20 21 22 23 24 25 26 10種類のセグメントデータ 27 使用する時に用いる変数 28 カソードコモン、アノードコモンで値を変更する 29 30 接続ピンの設定 31 32 33 デフォールトコンストラクタ 34 引数付きコンストラクタ 35 消灯 36 数字nをtimeミリ秒表示 37 |
SevenSegmentLED.cpp | |
---|---|
#include "SevenSegmentLED.h" SevenSegmentLED::SevenSegmentLED(PinName pin[], bool cathode) { pinSetting(pin, cathode); } void SevenSegmentLED::pinSetting(PinName pin[], bool cathode) { LED_ON= new DigitalOut(pin[0]); LED_G = new DigitalOut(pin[1]); LED_F = new DigitalOut(pin[2]); LED_A = new DigitalOut(pin[3]); LED_B = new DigitalOut(pin[4]); LED_E = new DigitalOut(pin[5]); LED_D = new DigitalOut(pin[6]); LED_C = new DigitalOut(pin[7]); if(cathode) { oneValue = 1; // cathode common zeroValue = 0; } else { oneValue = 0; // anode common zeroValue = 1; } } SevenSegmentLED::SevenSegmentLED() { PinName pin[]={p13,p14,p15,p16,p17,p18,p19,p20}; pinSetting(pin, true); // cathode common clear(); } const short SevenSegmentLED::zero[7] = {7, 0,1,2,3,4,5}; const short SevenSegmentLED::one[3] = {3, 1,2}; const short SevenSegmentLED::two[6] = {6, 0, 1, 6, 4, 3}; const short SevenSegmentLED::three[6] = {6, 0, 1, 2, 3, 6}; const short SevenSegmentLED::four[5] = {5, 1, 2, 5, 6}; const short SevenSegmentLED::five[6] = {6, 0, 5, 6, 2, 3}; const short SevenSegmentLED::six[7] = {7, 0,2,3,4,5, 6}; const short SevenSegmentLED::seven[4] = {4, 0,1,2}; const short SevenSegmentLED::eight[8] = {8, 0,1,2,3,4,5,6}; const short SevenSegmentLED::nine[6] = {6, 0,1,2,5,6}; const short* SevenSegmentLED::leds[10] = { zero, one, two, three, four, five, six,seven,eight,nine }; void SevenSegmentLED::clear() { *LED_ON = oneValue; *LED_G = zeroValue; *LED_F = zeroValue; *LED_A = zeroValue; *LED_B = zeroValue; *LED_E = zeroValue; *LED_D = zeroValue; *LED_C = zeroValue; } void SevenSegmentLED::show(int n, int time) { int i; t.reset(); t.start(); *LED_ON = zeroValue; while(t.read_ms()<time ) { led = (short int*)leds[n]; for(i=1; i<led[0]; i++) { switch(led[i]) { case 0: *LED_A = oneValue;wait_ms(1); *LED_A = zeroValue;break; case 1: *LED_B = 1;wait_ms(1); *LED_B = zeroValue;break; case 2: *LED_C = 1;wait_ms(1); *LED_C = zeroValue;break; case 3: *LED_D = 1;wait_ms(1); *LED_D = zeroValue;break; case 4: *LED_E = oneValue;wait_ms(1); *LED_E = zeroValue;break; case 5: *LED_F = oneValue;wait_ms(1); *LED_F = zeroValue;break; case 6: *LED_G = oneValue;wait_ms(1); *LED_G = zeroValue;break; } // switch } //for } // while *LED_ON = oneValue; } |
1 2 3 引数付きコンストラクタ 4 5 接続ピンの設定 6 7 8 接続ピンの設定 9 10 各ピンのオブジェクトを作り 11 そのアドレスをポインタに入れる 12 13 14 15 16 17 18 19 カソードコモンだったらば 20 21 22 23 24 25 26 27 28 デフォールトコンストラクタ 29 LED_ON,G,F,A,B,E,D,Cの順番でPinName配列に入れる 30 後ろの変数にはカソードコモンかどうかのbool値 31 以上の設定を行う 32 33 34 データの初期設定 35 36 37 38 39 40 41 42 43 44 45 データ配列 46 47 48 49 消灯メソッド 50 51 52 53 54 55 56 57 58 59 60 61 数字nをtimeミリ秒表示 62 63 64 時間計測のためタイマーのリセット 65 タイマースタート 66 コモン端子を表示にする 67 表示時間だけ表示する 68 数字nの表示データ配列の取得 69 0番目は配列の大きさ 70 71 データでどこを点灯させるか判断する 72 73 74 1ミリ秒だけセグメントを点灯させる 75 すぐに消灯させる 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 消灯する 98 99 |
main.cpp | |
---|---|
#include "mbed.h" #include "SevenSegmentLED.h" int main() { // SevenSegmentLED segment; PinName pin[]={p13,p14,p15,p16,p17,p18,p19,p20}; SevenSegmentLED segment(pin, true); int time=1000; while(true) { for(int i=0; i<10; i++) segment.show(i, time); } } |
1 2 3 4 5 6 デフォールトの設定で接続する場合 7 任意のピンに接続する場合 8 trueはカソードコモンを用いるという意味 9 1秒ごとに数字を変える 10 無限に続ける 11 12 0~9までの数字を 13 表示させる 14 15 |

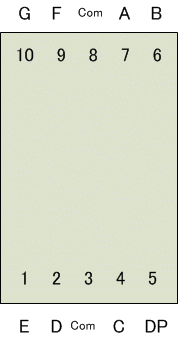

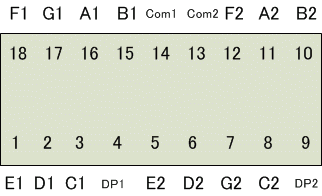

SevenSegmentLED.h |
---|
#include "mbed.h" class SevenSegmentLED { private: DigitalOut *LED_ON1; // 上の桁 DigitalOut *LED_ON2; DigitalOut *LED_G; DigitalOut *LED_F; DigitalOut *LED_A; DigitalOut *LED_B; DigitalOut *LED_E; DigitalOut *LED_D; DigitalOut *LED_C; Timer t; static short zero[7]; static short one[3]; static short two[6]; static short three[6]; static short four[5]; static short five[6]; static short six[7]; static short seven[4]; static short eight[8]; static short nine[6]; static short *leds[10]; short *led; short zeroValue, oneValue; void pinSetting(PinName pin[], bool cathode); void disp(int n, int digit); public: SevenSegmentLED(); SevenSegmentLED(PinName pin[], bool cathode); void clear(); void show(int n, int time); }; |
SevenSegmentLED.cpp |
---|
#include "SevenSegmentLED.h" SevenSegmentLED::SevenSegmentLED(PinName pin[], bool cathode) { pinSetting(pin, cathode); } // 2桁用 void SevenSegmentLED::pinSetting(PinName pin[], bool cathode) { LED_ON1= new DigitalOut(pin[0]); LED_ON2= new DigitalOut(pin[1]); LED_G = new DigitalOut(pin[2]); LED_F = new DigitalOut(pin[3]); LED_A = new DigitalOut(pin[4]); LED_B = new DigitalOut(pin[5]); LED_E = new DigitalOut(pin[6]); LED_D = new DigitalOut(pin[7]); LED_C = new DigitalOut(pin[8]); if(cathode) { oneValue = 1; // cathode common zeroValue = 0; } else { oneValue = 0; // anode common zeroValue = 1; } } SevenSegmentLED::SevenSegmentLED() { // ON1,ON2, G, F, A, B, E, D, C PinName pin[]={p12,p13,p14,p15,p16,p17,p18,p19,p20}; pinSetting(pin, true); // cathode common clear(); } short SevenSegmentLED::zero[7] = {7, 0,1,2,3,4,5}; short SevenSegmentLED::one[3] = {3, 1,2}; short SevenSegmentLED::two[6] = {6, 0, 1, 6, 4, 3}; short SevenSegmentLED::three[6] = {6, 0, 1, 2, 3, 6}; short SevenSegmentLED::four[5] = {5, 1, 2, 5, 6}; short SevenSegmentLED::five[6] = {6, 0, 5, 6, 2, 3}; short SevenSegmentLED::six[7] = {7, 0,2,3,4,5, 6}; short SevenSegmentLED::seven[4] = {4, 0,1,2}; short SevenSegmentLED::eight[8] = {8, 0,1,2,3,4,5,6}; short SevenSegmentLED::nine[6] = {6, 0,1,2,5,6}; short* SevenSegmentLED::leds[10] = { zero, one, two, three, four, five, six,seven,eight,nine }; void SevenSegmentLED::clear() { *LED_ON1 = oneValue; *LED_ON2 = oneValue; *LED_G = zeroValue; *LED_F = zeroValue; *LED_A = zeroValue; *LED_B = zeroValue; *LED_E = zeroValue; *LED_D = zeroValue; *LED_C = zeroValue; } void SevenSegmentLED::show(int n, int time) { int high=n/10; int low =n%10; t.reset(); t.start(); while(t.read_ms()<time ) { disp(low, 0); disp(high,1); } // while } void SevenSegmentLED::disp(int n, int digit) { led = leds[n]; if(digit==0) *LED_ON2 = zeroValue; else if(digit==1) *LED_ON1 = zeroValue; for(int i=1; i<led[0]; i++) { switch(led[i]) { case 0: *LED_A = oneValue;wait_ms(1); *LED_A = zeroValue;break; case 1: *LED_B = 1;wait_ms(1); *LED_B = zeroValue;break; case 2: *LED_C = 1;wait_ms(1); *LED_C = zeroValue;break; case 3: *LED_D = 1;wait_ms(1); *LED_D = zeroValue;break; case 4: *LED_E = oneValue;wait_ms(1); *LED_E = zeroValue;break; case 5: *LED_F = oneValue;wait_ms(1); *LED_F = zeroValue;break; case 6: *LED_G = oneValue;wait_ms(1); *LED_G = zeroValue;break; } // switch } //for if(digit==0) *LED_ON2 = oneValue; else if(digit==1) *LED_ON1 = oneValue; } |
main.cpp |
---|

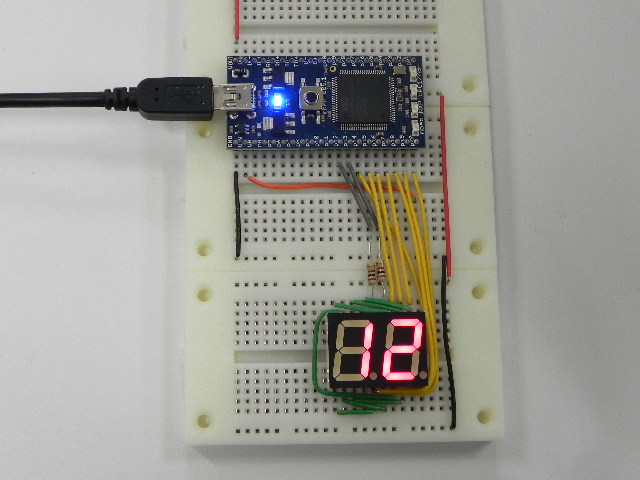

#include "mbed.h" #include "SevenSegmentLED.h" // KNR261はカソードコモン int main() { // SevenSegmentLED segment; // ON1, ON2, G, F, A, B, E, D, C PinName pin[]={p12, p13,p14,p15,p16,p17,p18,p19,p20}; SevenSegmentLED segment(pin, true); int time=500; while(true) { for(int i=0; i<100; i++){ segment.show(i, time); } } } |
