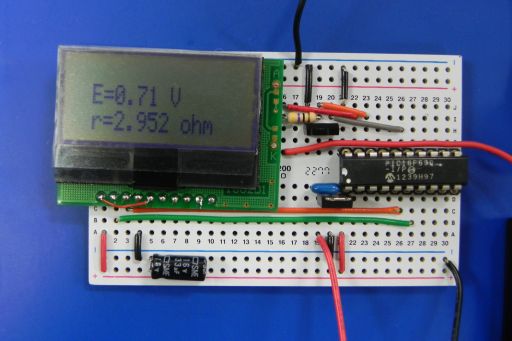

// LCD 電池内部抵抗測定装置
// LCD: Reset(1), SCL(2), SDA(3), Vss(4)、Vdd(5)
//      ResetはVddに繋いでおく
// LCD    :  16F690
// SDA(3) : PORTC.F4(6)
// SCL(2) : PORTC.F3(7)
#include "i2c.h"
#include "I2CLCD.h"
#define keta 1000

float R01=47;
sbit BattSW at PORTC.B1;     //(15)

char buff[16];

void main() {
  unsigned int V, Vsw, E, tmp, HighDigit, LowDigit;
  float InnerR, openE;
  int i;
  OSCCON = 0x75;             // 内部OSC8MHzで動作させる
  PORTA = 0xff;              // PORTAを0にする
  TRISA = 0x07;              // 下3bit入力、その他出力
  ANSEL = 0x07;              // アナログ入力をON/OFF
  ANSELH = 0;                // アナログ入力をOFF
  OPTION_REG |= 0x80;
  PORTC = 0xff;              // PORTCを0xffにする
  TRISC = 0xe5;              // PORTCを入力に設定する
  LCDinit();
  BattSW = 0;                // off
  ADCON0.ADON = 1;
  ADCON0.ADFM = 1;           // right justify
  while(1) {
    ADCON0.CHS0 = 0;
    Delay_us(1);
    ADCON0.GO =1;
    while(ADCON0.GO);
    E = ADRESH;
    E = E*256 + ADRESL;      // E

    BattSW = 1;              // on
    Delay_ms(1000);          // ONtime
    ADCON0.CHS0 = 0;         // V
    Delay_us(1);
    ADCON0.GO =1;
    while(ADCON0.GO);
    V = ADRESH;
    V = V*256 + ADRESL;
    ADCON0.CHS0 =1;          // Vsw
    Delay_us(1);
    ADCON0.GO =1;
    while(ADCON0.GO);
    Vsw = ADRESH;
    Vsw = Vsw*256 + ADRESL;
    BattSW = 0;              // off
    InnerR = R01*keta*(E-V)/(V-Vsw)+0.5;
    clear();
    HighDigit = (unsigned int)InnerR/keta;
    openE = E*3.3/1024*100+0.5;
    writeString("  E="); writeInt((unsigned int)openE/100);writeCh('.');
    writeInt((unsigned int)openE%100);writeString(" V\n");
    writeString("  r="); writeInt(HighDigit);writeCh('.');
    LowDigit = (unsigned int)InnerR%keta;
    writeInt(LowDigit);writeString(" ohm");
    FloatToStr(InnerR/100.0,buff);
    Delay_ms(1000);
  }
}
